Advices for the Quartz Infrared Heater Elements During Installation and Using

Advices for the Quartz Infrared Heater Elements During Installation and Using

Due to the particularity of the material and structure of the Quartz Tube,we need pay attention to the following points during the Infrared Heater Elements installation and using:

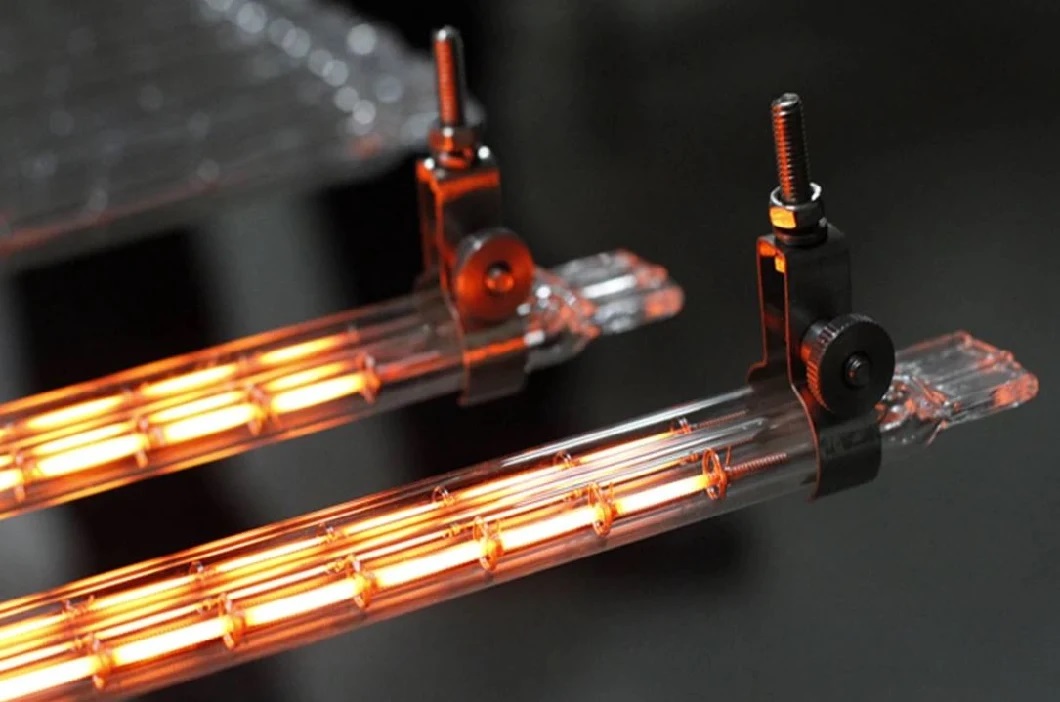

1. The IR heating tube should not be rigidly fixed at both ends to prevent the heating tube from being broken due to improper mechanical force.Our infrared heater components are equipped with Mounted Clips

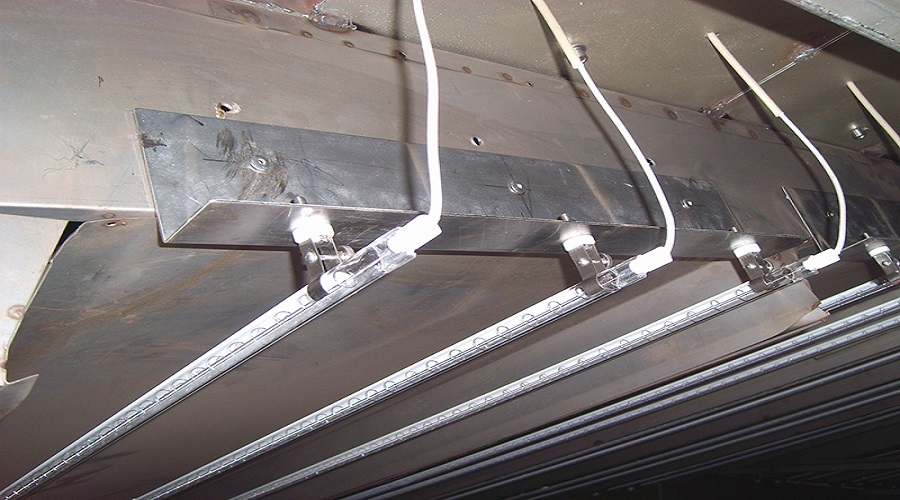

2. The support of the two-end porcelain seat of the heating pipe and the equipment should be freely fit as far as possible, and the axial and surrounding clearance should be no less than 1~3mm; if elastic clamping is used, the pipe body and the rigid body should also be ensured. There is enough room for thermal expansion between them.

3. Place the two-end porcelain head of the heating tube in a low temperature zone under probable conditions to extend the service life of the heating tube.

4. The heating pipe should generally be kept at a level when it is used; if it has special needs to be tilted or used vertically, please contact our Ministry of Commerce or Product Department.

5. For the heating tube of the gold-plated reflective layer, avoid hard objects scratching the reflective layer during installation and use.

6. The power supply lead wire of the heating pipe should be covered with high temperature resistant insulating porcelain bushing or fiberglass pipe during installation to avoid possible leakage hazard.

7. Infrared Radiation Heating Lamp can be combined with temperature controller, thyristor power regulator, voltage regulator, etc. to form an automatic temperature control system. Due to the large starting current of the heating tube in the cold state (duration is very short), please pay attention to this feature when selecting the temperature control device.
