double tube fast medium wave infrared emitters 4000W 380V

Double Tube Fast Medium Wave Infrared Emitters 4000W 380V

Quick look

Fast response medium wave infrared emitters have same product processing as short wave infrared lamps, made up from coiled tungsten filament and surrounded by a quartz glass and kinds of halogen gas. It belongs to vacuum lamp.

Fast medium wave heaters can design twin tube IR emitters with different filament configurations. This allows extraordinary flexibility both in terms of heated area modularity and lead wire position. The picture below represents some of the most common filament configuration.

The main characters of fast response medium wave IR emitters

· Twin tube standard section 23 x11mm & 33 x 15mm

· Filament temperature 1500 - 1800 °C

· Peak wavelength 1.4 - 1.6 µm

· Maximum power density 50 W/cm

· Maximum surface power 120 kW/m2

· Universal operation (standard horizontal operation, but are modified for vertical )

· Heaters can be one-side and two-side connected.

· Gold and ceramic white coating on the heater quartz tube ensures that the effective radiation is virtually doubled.

· Standard, custom and OEM models available

Product applications

PET preform heating in Stretch blow moulding machines

Powder coating curing

Resins Hardening, Rubber coating drying

Adhesives - End polymerization

Food - Pasteurization / Sterilization

Paper Industry - Humidity Control

Industrial Drying - Paint , Varnishes , Dyeing

Semi Conductor Industries - Heating of wafers

Printing - Printing ink drying in screen and offset machines

Plastic welding

Drying of Water-Repellent Coating on Fabric

Textile Embossing and Laminating

Coating on quartz tube surface

QUICKLY offers infrared emitters which coated with gold and white reflector , they can emit heat directly to the product. A gold or white coating on the infrared emitters reflects the infrared radiation. Consequently the infrared radiation impinging on the product is virtually doubled, increasing the effectiveness of the heat output.

The reflection efficiency of gold coating is higher than white coating, while for the emitters with high watt density or the surface temperature of the tube above 800°C , we suggest to use ceramic coating as reflector because the temperature resistance is up to 1000°C .

In addition to 180° (half-tube) coating, we also manufacture 270° coating or other customer specified degrees.

Mounting clips for infrared lamps installing

The main processing steps of vaccum infrared emitters

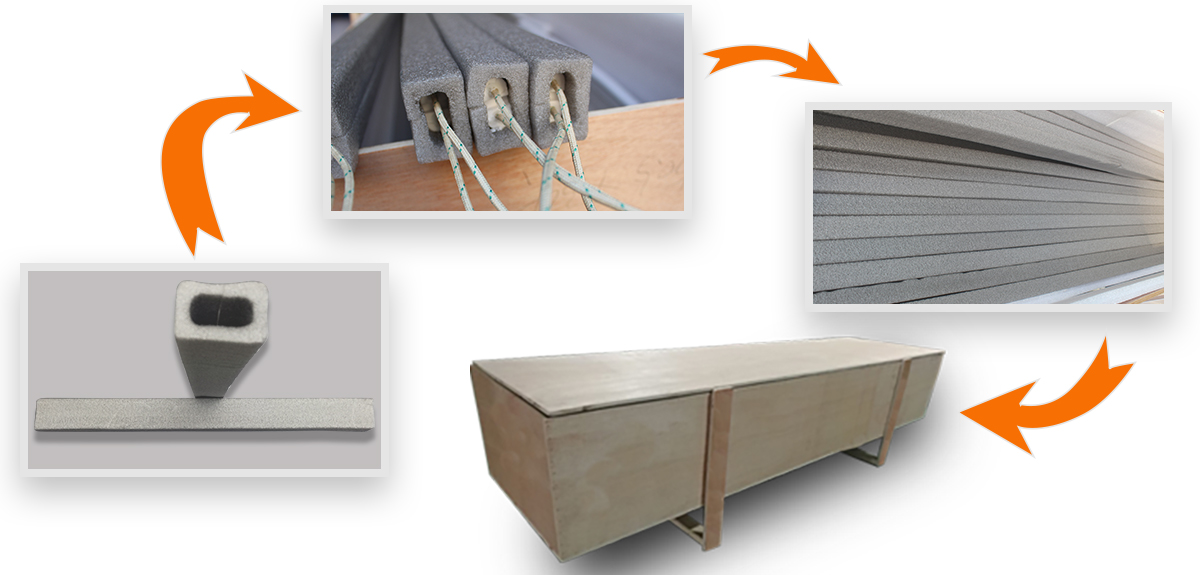

Safe packing way for lamps

Why QUICKLY ?

1. The materials used for our lamps are at good quality approval UL testing


2. As a manufacturer of infrared lamps over 10 years history, and we have experienced workers, half of them have worked for us over 5 years


3. We are factory, so we can control the delivery date, material, quality directly
4. For any exclusive-human damage within warranty time, we will delivery the replacements within 3-5 work days once confirming


5. Safe package to protect lamps from being broken during shipping


6. we will provide you the lamp’s holder free of charge ( 2 units clamps for 1 piece lamp)


7. Various Payment methods like wire transfer, paypal, western union


8. Shipping ways provided including DHL, Fedex, TNT, UPS, air, sea

FAQ:

1. how to place the order?
   Let us know your required lamp specifications including lamp type,diameter, length, power, voltage,reflector...then we send you the
   quotation,after payment,production will be started, after finished, they will be shipped to your side.


2. Why Quartz Glass as the one main of material?
   The choice of quartz glass is not a coincidence: this extraordinary material is totally transparent at IR radiation, can withstand constant
   working temperatures of more than 1000°C and it is resistant to chemical corrosion.


3. could you supply clamps for lamp installing ?
   Yes, we will provide mounting clamps for clients, and the corresponding clamps quantity with purchased lamps are supplied freely bu us.


4. Have an unusual design?
   Send us a drawing, sketch, or sample and we'll be happy to quote it.
   We specialize in small runs and custom designs, but can be highly competitive on large orders as well.


5. How does your factory do quality control
   " quality is priority", we always and keep paying more attention to QC from the material purchasing to the lamps' packing. Our product have gained CE, ROHS, ISO9001.
