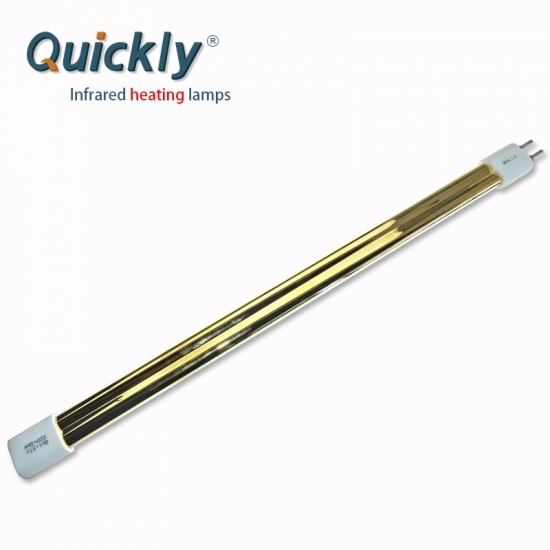

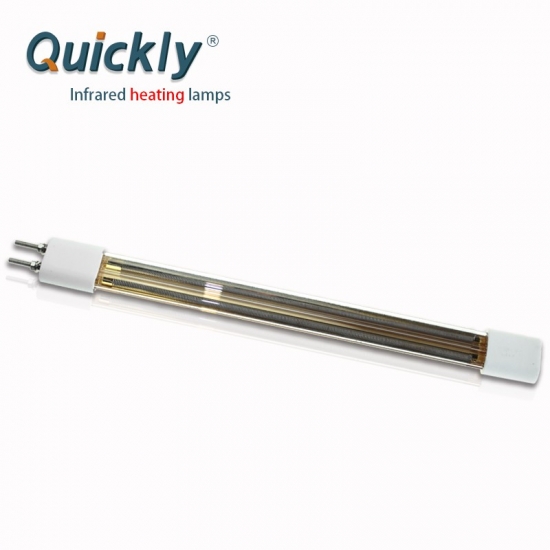

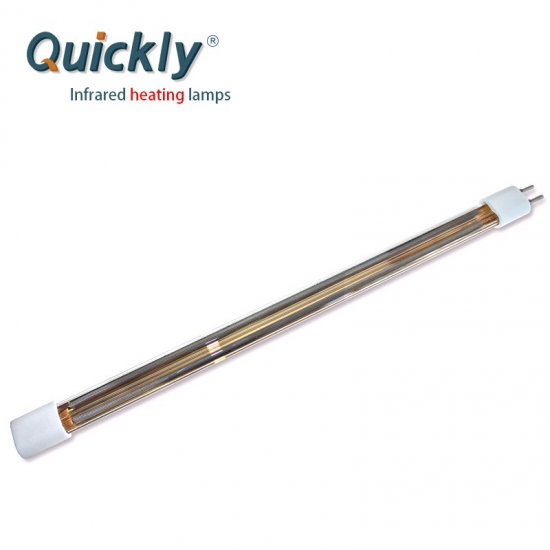

Gold Coated Medium Wave Twin Tube IR Heating Lamps for PU Leather Embossing

IR Medium Wave emitters are particularly suitable for the fast heating of surface parts or thin thickness materials. Plastic, water and other solvents absorb particularly well the radiation at this wavelength. Horizontal working position is standad, but on request there is also the possibility to design vertical working emitters. Gold or ceramic white eflector will be applied directly on the quartz tube for better convey and focus all the energy emitted on the material.

Basic Description

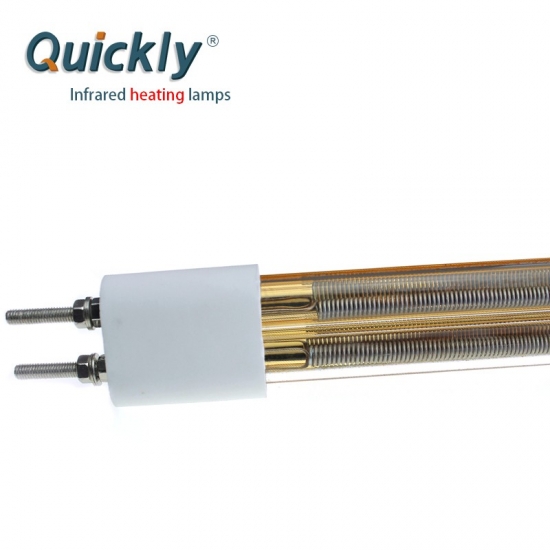

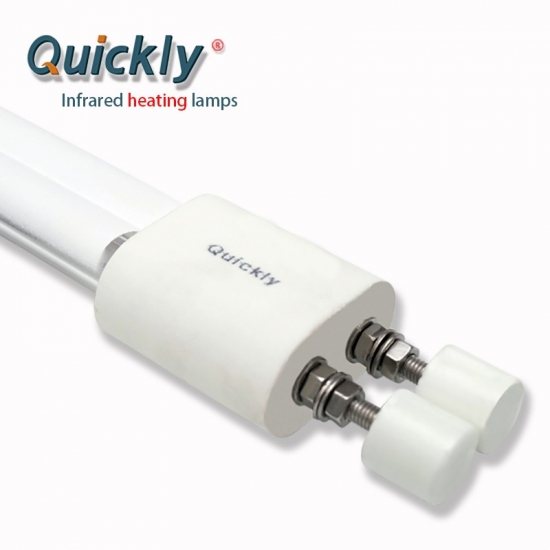

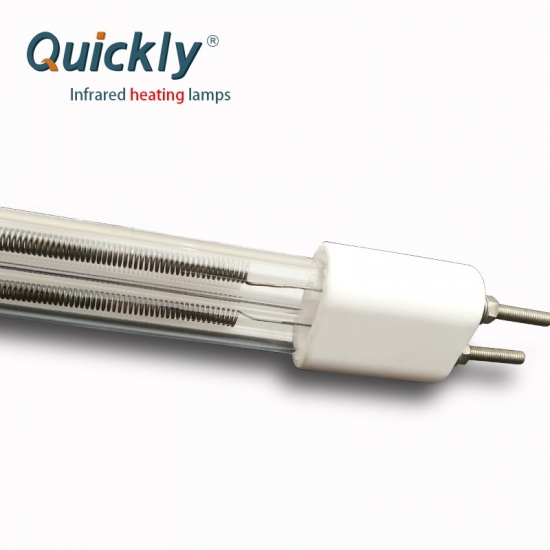

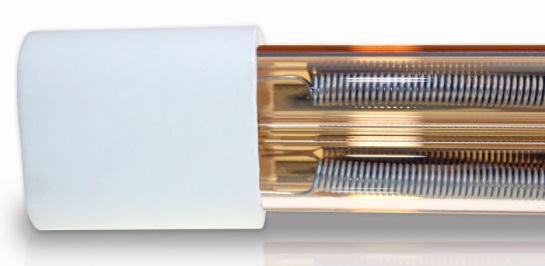

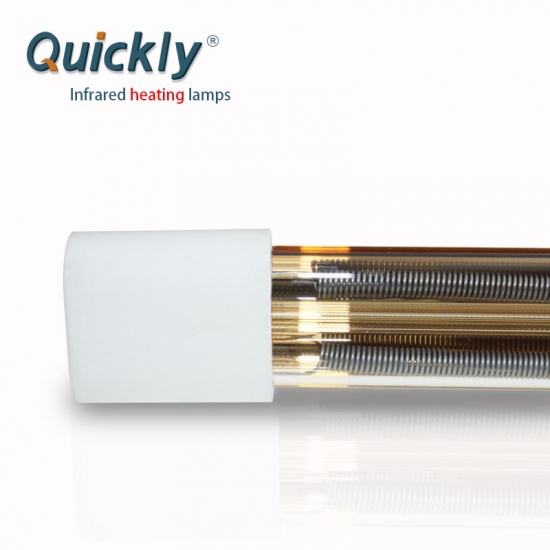

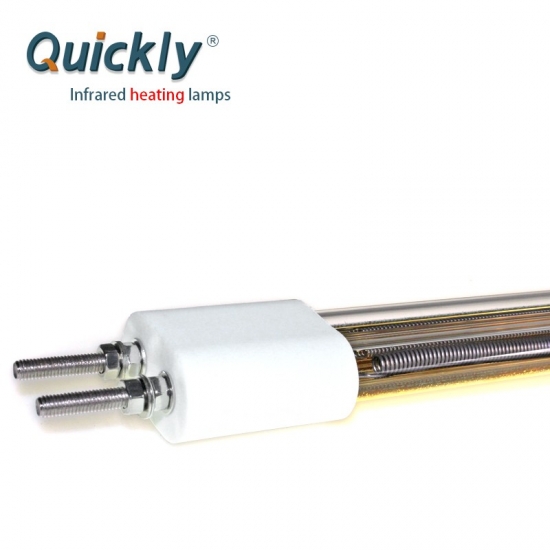

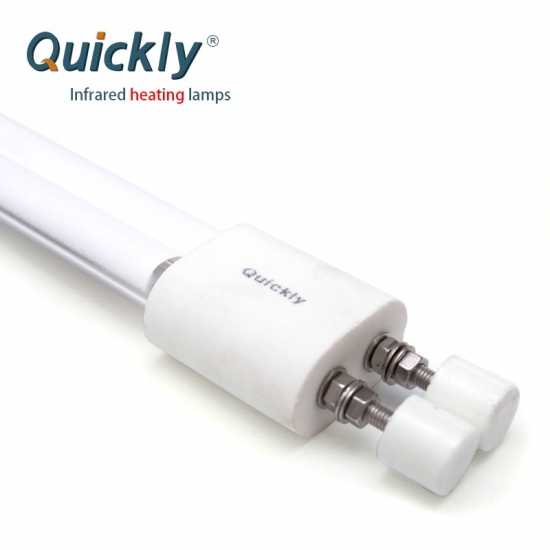

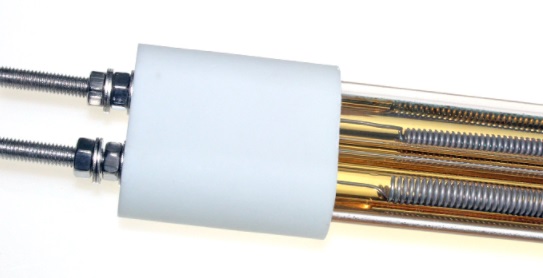

Medium wave Quartz Infrared Heaters consist of a quartz tube with a nickel or Iron chromium alloy coiled filament. QUICKLY’s MW IR lamps are typically come in diameters of 10 mm, 11mm,12 mm,13mm,13.5mm,15 mm,18mm,20mm for Single Tube or with 8*19mm, 11 x 23 mm & 15 x 33 mm for Twin Tube. The Lengths of the Medium Wave Quartz Infrared Heaters can vary from 100 mm to 6000 mm as per customers design and specifications. They are available in clear or opaque quartz tube with gold or ceramic reflective coatings that focus the emitted energy onto the substrate. Standard medium wave emitters are not filled with any gases and are not sealed.

Different construction type for twin tube medium wave IR heaters

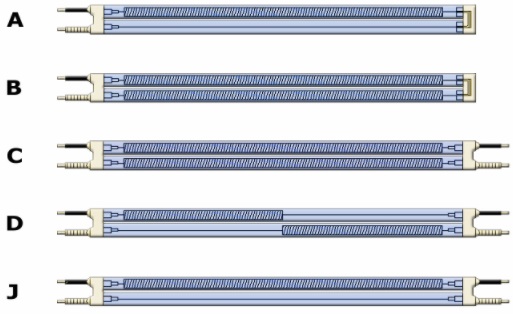

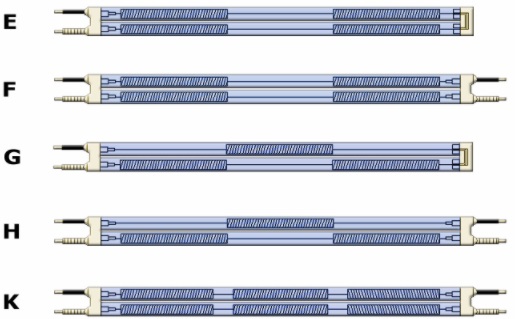

Twin tube IR emitters with different filament configuration it can be made single side or two sides cable connection, and different heating channel. this allows an extraordinary flexibility both in term of heated area modularity and cables position. In the picture below there are represented some of the most common filament configuration.

Product advantage

• Medium Wave Quartz Infrared Heaters are excellent for surface heating and for drying coatings paint, dyes, lacquers, adhesives and in the processing of plastic sheet and films.
• Medium Wave Quartz Infrared Heaters are slower in response to changes in process requirement as compared to the short-wavelength lamps and are slower to heat up and cool down.
• Because of their long life, medium wave quartz infrared heaters perform extremely well in continuous processes.

Typicall applications

• screen printing glass
• glass lamination
• laminated glass cutting
• mirror paint drying
• Curing Painted Surfaces
• Preheating Plastics
• Curing Powder Coatings
• Drying / heat setting textiles after dyeing or printing
• Supplemental heating
• Drying or inks for printing and silk-screening
• Preheating and curing wood coating
• Glass Curing
• Shrink Packaging Machines.
• Drying Textiles.
• Rubber Curing.
• Drying of paints
• Processing Plastic foils and sheet

Why QUICKLY ?

1. The materials used for our lamps are at good quality approval UL testing


2. As a manufacturer of infrared lamps over 10 years history, and we have experienced workers, half of them have worked for us over 5 years


3. We are factory, so we can control the delivery date, material, quality directly


4. For any exclusive-human damage within warranty time, we will delivery the replacements within 3-5 work days once confirming


5. Safe package to protect lamps from being broken during shipping


6. we will provide you the lamp’s holder free of charge ( 2 units clamps for 1 piece lamp)


7. Various Payment methods like wire transfer, paypal, western union


8. Shipping ways provided including DHL, Fedex, TNT, UPS, air, sea

FAQ

1. how to place the order?
   Let us know your required lamp specifications including lamp type,diameter, length, power, voltage,reflector...then we send you the
   quotation,after payment,production will be started, after finished, they will be shipped to your side.


2. Why Quartz Glass as the one main of material?
   The choice of quartz glass is not a coincidence: this extraordinary material is totally transparent at IR radiation, can withstand constant
   working temperatures of more than 1000°C and it is resistant to chemical corrosion.


3. could you supply clamps for lamp installing ?
   Yes, we will provide mounting clamps for clients, and the corresponding clamps quantity with purchased lamps are supplied freely bu us.


4. Have an unusual design?
   Send us a drawing, sketch, or sample and we'll be happy to quote it.
   We specialize in small runs and custom designs, but can be highly competitive on large orders as well.


5. How does your factory do quality control
   " quality is priority", we always and keep paying more attention to QC from the material purchasing to the lamps' packing. Our product have gained CE, ROHS, ISO9001.


6. why coating on quartz tube surface ?

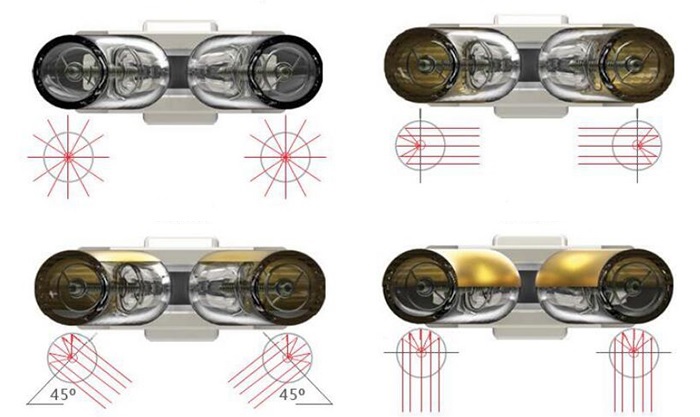

   QUICKLY offers infrared emitters which coated with gold and white reflector , they can emit heat directly to the product. A gold or white coating on the infrared emitters reflects the infrared radiation. Consequently the infrared radiation impinging on the product is virtually doubled, increasing the effectiveness of the heat output. The reflection efficiency of gold coating is higher than white coating, while for the emitters with high watt density or the surface temperature of the tube above 800°C , we suggest to use ceramic coating as reflector because the temperature resistance is up to 1000°C . In addition to 180° (half-tube) coating, we also manufacture 270° coating or other customer specified degrees.
