Infrared heating is a kind of radiation heating. It spreads by a kind of infrared radiation (light)-- infrared light from material in the form of molecular (atomic) resonance absorption, so as to achieve the purpose of heating. It can be applied in many fields such as the heating process of industry coating, plastic forming, automotive industry, glass making, spinning, solar PV, food baking, drying of printing inks, quick drying of primer and paint on furniture, printed circuit, and so forth.
Brand:
QuicklyItem no.:
FDWIR20221013Product origin:
ChinaColor:
Gold coating/White coating/ClearLead Time:

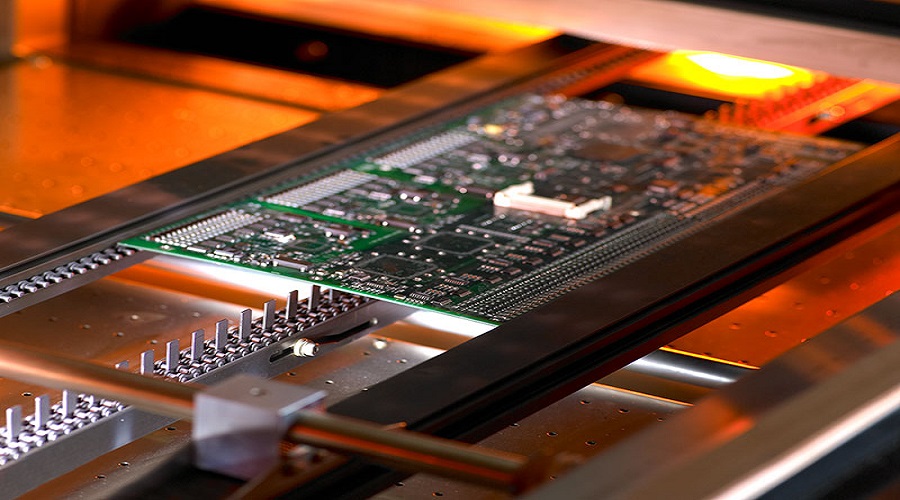

5-7daysInfrared Heating for Electronics & Semiconductors Processing
1.Product Description

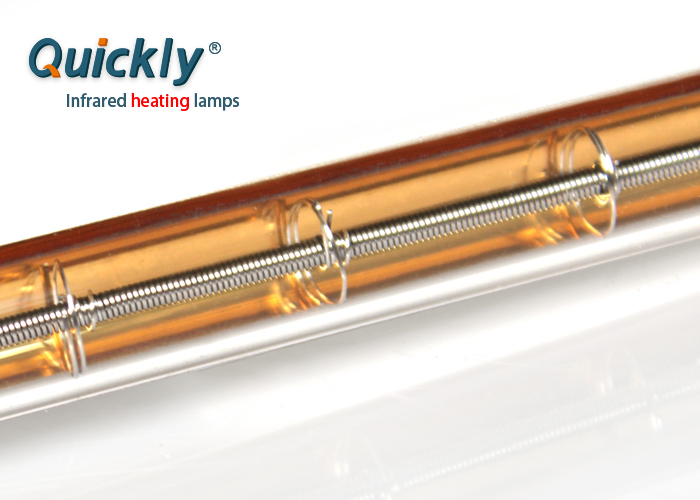

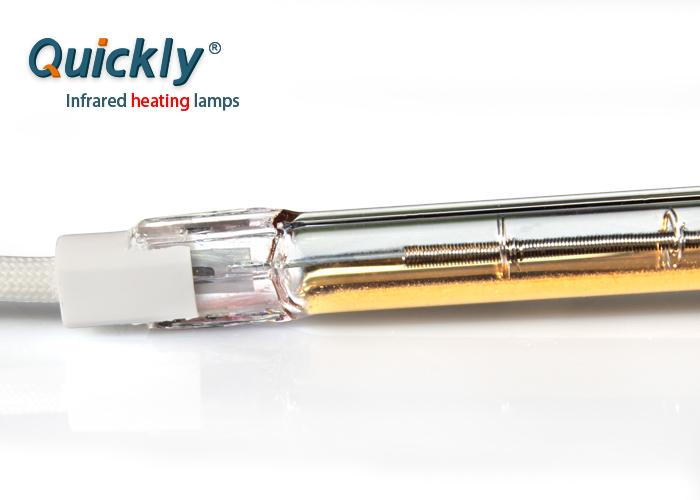

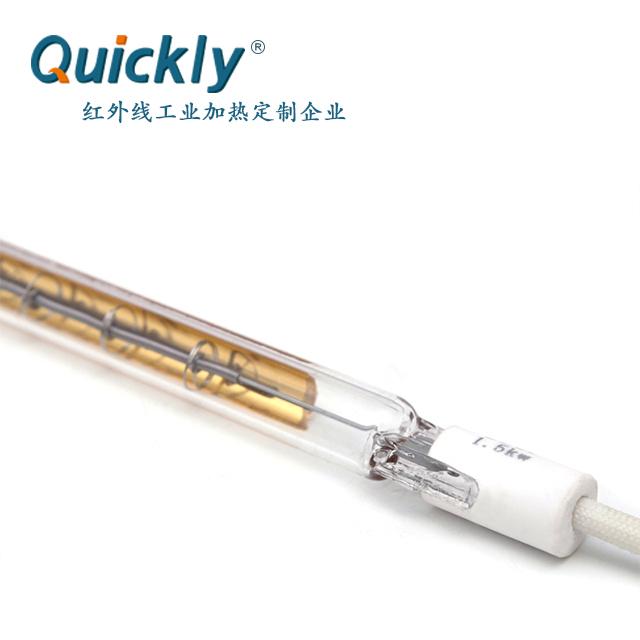

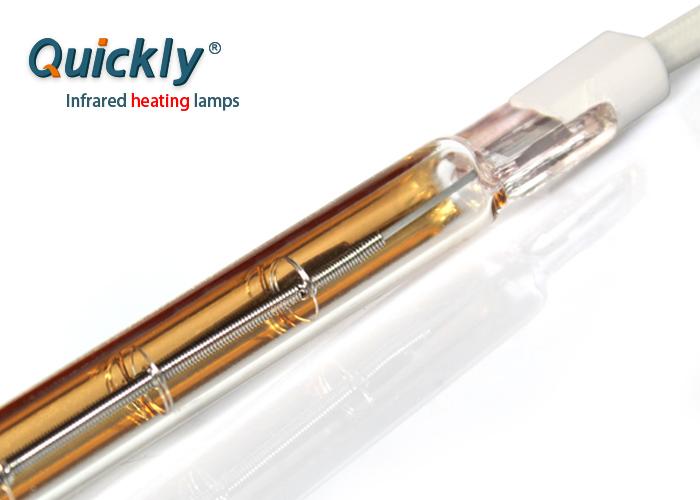

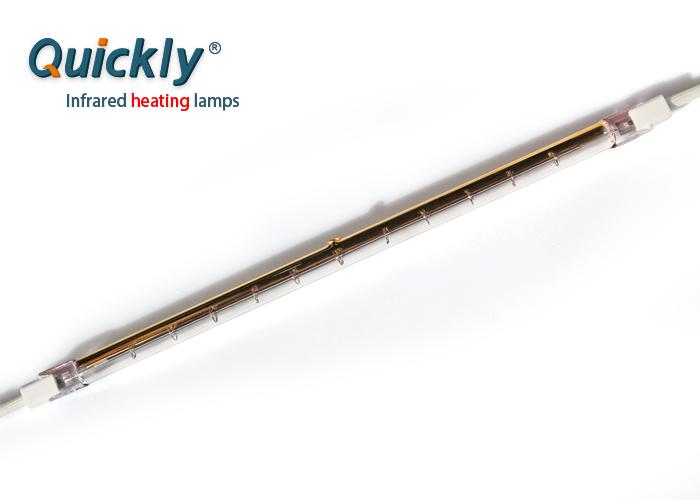

Quartz Halogen Infrared Lamp Tube NIR Heater Element for Printed Electronics Preheating
Quickly manufactures quartz infrared heating lamp tube in virtually any length,Wattage,and Voltage combination for industrial heating systems and new applications or direct replacement into existing equipment.Nomatter what kind of IR Replacement Emitters you need,just contact us and get customized products.
Filament Construction of Twin Tube Infrared Heaters
Twin Tube Infrared Lamp with different filament configurations can be made with single side cable connection or two sides, and different heating channels. this allows extraordinary flexibility both in terms of heated area modularity and cable position. In the picture below there are some of the most common filament configurations:
2.Industrial Applications
| Food industry | food drying, food heating, food packaging material molding, food high temperature sterilization; |
| Printing industry | drying and curing of glue and ink; |
| Glass industry | annealing of glass and drying of coatings; |
| Packaging industry | PET blowing, laminating, ink drying; |
| Footwear industry | activated drying of glue; |
| Furniture industry | rapid drying of waterborne/oily coatings and paints; |
| Rubber industry | surface modification, softening and molding of plastics; |
| Photovoltaic industry | battery wafer soldering, sintering, substrate drying, spray preheating; |
| Automotive industry | sunlight simulation environment warehouse, sealing strip / wire harness heating, vehicle painting paint, body part point to make baking;Bonding Automotive Interiors |
| Textile industry | dry coating, fabric preheating, drying, pressing and activation of adhesives. |
3.ABOUT US
Anhui Quickly Industrial Heating Technology Co., ltd is a family of privately-owned companies focused on the development of infrared heating technology for more than 14 years which dramatically reduces the time and space required for industrial heating and drying processes and provides quantum leaps forward in efficiencies for our global customers.We manufactures quality Infrared Heating Element for many businesses' equipment.
4.Why Choose US
Our IR Heater Lamps are under standard in CE & ROHS, we have strict quality control to make sure each IR lamp is perfect!By the way,we support the best service for you:
A:Sample Service
Some samples are free of charge, buyer shoulder the fright cost.
B:Customized Service
1. All of our Infrared Heater Elements are customized according to your unique practical request, professional technicians do one-to-one service for you and can customize 1pc Infrared Heater for your quality testing at the beginning.
2. We offer OEM services, we can print your logo on Infrared heating lamps as your requirements.
C:After-sale Service
Warranty Time of Short wave Infrared heat lamp: 5,000 hours
Warranty Time of Carbon Fiber Infrared heat lamp: 10,000 hours
Warranty Time of Medium wave Infrared heat lamp: 20,000 hours
During the warranty time, any non-man-made quality issue, once confirmed, we will sent the new replacement immediately without any charge.
5.Shipping & Packing
6.FAQ
1. Are you a factory or trading company?
Quickly is a factory, we are professional manufacturer of infrared heater for more than 10 years.
2. Where is your factory? Can I visit your factory?
We're in Hefei city,Anhui Province of China. You are warmly welcome to our factory, we will be happy to show you our production, QC, warehouse, etc.
3. Can I have samples? Is it free?
Yes, we are happy to offer samples for you to check and test. Depends on sample quantity and product model, we will
confirm with you whether it's free sample or not.
4. What is your term of delivery?
We accept FOB, CIF, EXW etc. Please choose the one which is the most convenient and cost effective for you.
5. What about the lead time for mass production?
It depends on the order quantity and the season you place the order. Generally speaking, the lead time of MOQ is about
7-15 days. We suggest that you start inquiry at least two months before the date you would like to get the products at your country.
6. Do you offer guarantee for the products?
Yes, it must be. We guarantee 2 years for heaters and 5000-8000 hours for infraraed heater.
7. What type of payment do you accept?
T/T.WEST UNION.PAYPAL.CREDIT CARD.
8. Is it OK to print my logo on product?
Yes, it's possible. But please kindly note we have MOQ request for different products.
9. Can you do the design for us?
Yes. We have a professional team having good experience in box design and manufacturing. Just tell us your idea and
we will help to carry out your ideas into perfect packing boxes. It does not matter if you do not have someone to complete
files. Send us high resolution images, your logo and text and tell us how you would like to arrange them. We will send you
finished files for confirmation.
Twin tube IR emitter is made up of 8-shape high-purity clear quartz twin tube, each tube has Heating Coil of Tungsten material which runs in U shape in the tube which is filled with halogen gas.Power Density up to 150KW/m2 is achieved. Heating up and cooling down time is approximately one second. There are two standard sizes 11 mm x 23 mm and 15 mm x 33 mm in cross section for twin tube short wave IR radiators, and the maximum length available is 4000 mm
view more
Infrared lamps radiation has been utilizd to preform heating processing in PET bottle production. The heating quality of the preform directly determines the quality and output of the PET bottle. Quickly NIR lamps have become the most trusted brand of various bottle blowing machine manufacturers because of its high heating efficiency, rapid response and stable quality.
view more
Short wave IR emitters deliver large amounts of infrared radiation energy very quickly and instantaneously. Infrared radiation penetrates into the substrate with high efficacy compared to others modes of heating. Short wave IR heating elements has several advantages over other forms of heating including substantial power savings, high efficiency of heat delivery, compact installation and low level risk of fire hazards.
view more
Short wave quartz infrared heaters are comprise finely coiled tungsten filament surrounded by a quartz glass and kinds of halogen gas. Twin tube IR emitter is made up of 8-shape high-purity clear quartz twin tube.Power Density up to 150KW/m2 is achieved. Heating up and cooling down time is approximately one second.
view more
Infrared quartz emitters, thanks to their performance and efficiency, are widely used in any thermal process including Photovoltaic Industry. Short-Wave Infrared emitters produce infrared waves of around 0.75 – 1.4 microns in wavelength and operate at high temperatures above 1,300 – 2,6000C.
view more
Short-Wave Infrared emitters produce infrared waves of around 0.75 – 1.4 microns in wavelength and operate at high temperatures above 1,300 – 2,6000C. Since these wavelengths have higher frequencies, they tend to be more transmissive and reflective.The high efficiency of this technique, however, not only follows from the absorption properties of the materials to be heated, but also in conjunction with the atmosphere.
view more
short wave infrared heater lamps focus heat exactly where it’s needed, heat quickly and precisely controllable, efficient use of energy, easy integration into existing production facilities
view more
QUICKLY 8 shape twin tube infrared emitters are made of high-quality quartz tubes and feature a gold reflector for the highest efficiency
