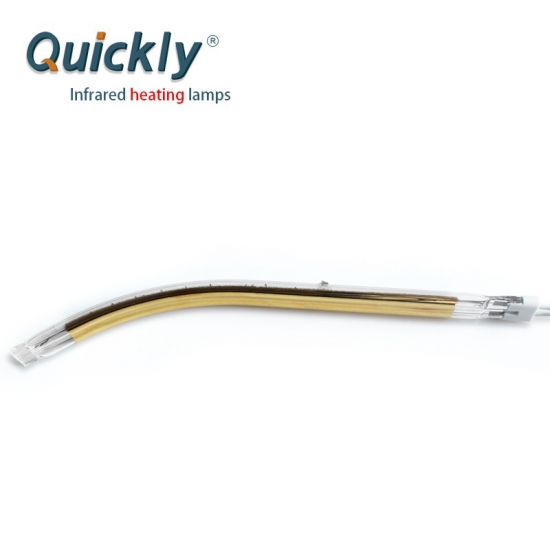

quartz short wave IR radiators with gold reflector 230V 1200W

Quartz Short Wave IR Radiators with Gold Reflector 230V 1200W

The main features of Twin Tube Quartz IR Short Wave emitters are:

Standard section: 23 x11 mm, 33 x15 mm

Radiation peak in the range of 0.75 – 1,4µm

100 W/cm maximum density of nominal power

200 kW/m2 maximum surface power density

Filament Response time to Switch on /off 1- 2 seconds

Short cycle times, typical heating period about 12s

Radiation temperature approx. 1.800 - 2.400°C

Horizontal and vertical working position

Greater distance to material possible, low risk of fire

Flexible heating via individual control of single radiator units

Fixed contour, standard or special design, e.g. 3D contours

Energy direction transmitters can be used for tolerance adjustments

Coating applied on the quartz tube for better convey and focus all the energy emitted on the material

Filament contstruction of twin tube heaters

Twin tube IR emitters with different filament configuration can be made single side cable conneciton or two sides, and different heating channels. this allows an extraordinary flexibility both in term of heated area modularity and cables position. In the picture below there are some of the most common filament configuration.

Lamps' advantages:

Contactless process

Higher strengths

Particle purity

Absolutely air and gas impermeable

Joining of different materials

Simple machine technology, large parameter window

Wide range of IR machines

All types of tooling and emitters

Extensive know-how for all joining processes

Numerous reference

Product applications

PET performs heating in stretch blow moulding machines.

Printing ink drying in offset machines

Pre-heating before embossing

Screen printing curing on T-shirts

Textiles and various such applications

Paint curing

Powder coating

Lacquers drying

Drying glaze on ceramic tiles

Textiles

semiconductor industry

Why choose us

1. The materials used for our lamps are at good quality approval UL testing

2. As a manufacturer of infrared lamps over 10 years history, and we have experienced workers, half of them have worked for us over 5 years

3. We are factory, so we can control the delivery date, material, quality directly

4. For any exclusive-human damage within warranty time, we will delivery the replacements within 3-5 work days once confirming

5. Safe package to protect lamps from being broken during shipping

6. we will provide you the lamp’s clips free of charge ( 2 units clamps for 1 piece lamp)

7. Various Payment methods like wire transfer, paypal, western union

8. Shipping ways provided including DHL, Fedex, TNT, UPS, air, sea

FAQ

1. How to place the order?
Let us know your required lamp specifications including lamp type,diameter, length, power, voltage,reflector...then we send you the
quotation,after payment,production will be started, after finished, they will be shipped to your side.

2. Could you supply clamps for lamp installing ?
Yes, we will provide mounting clamps/clips for clients, and the corresponding clamps quantity with purchased lamps are supplied freely bu us.

3. Could you provide sample for performance testing and appearance checking?
Yes, we can provide the sample based on your required specs.

4. Have an unusual design?
Send us a drawing, sketch, or sample and we'll be happy to quote it.
We specialize in small runs and custom designs, but can be highly competitive on large orders as well.

5. How does your factory do quality control
" quality is priority", we always and keep paying more attention to QC from the material purchasing to the lamps' packing. Our product have gained CE, ROHS, ISO9001.

6. Why there are different wavelength IR lamps
All materials including chairs,human body, everything will absorb a fraction of the infrared spectra, reflect a fraction at the surface and allow a fraction of the radiation to pass through. Infrared lamps can realize the heating and drying purpose at a shorter time with less energy but get a good performance only when the infrared radiation which precisely matches the absorption characteristics of the product. Depending on the temperature of the heating filament, an infrared emitter can delivers distinctly different radiation at various wavelengths. Short wave radiation can penetrate deep into some solid materials and ensure a uniform through heating. Medium wave radiation is absorbed mostly in the outer surface and predominantly heats the surface.Medium wave radiation is particularly well absorbed by many plastics,glass and especially water and is converted directly into heat. So we need different lamps at different wavelength for different heating applications requests.
